Evergrate Downspout boots
Evergrate downspout boots are a durable and attractive downspout connection solution ideal for both streetscape and green infrastructure applications. Our cast iron downspout boots can connect to soil pipes or trench drains, and are available in a vast size range to accommodate virtually any commercial size downspouts. Like all our solutions, these downspout boots are designed to work with other Evergrate products to create a seamless drainage system that lasts.
Your Seamless Streetscape Drainage Solution.
Evergrate downspout boots are compatible with our trench drains and curb openings, providing a high quality sidewalk drainage system with virtually limitless possibilities.
E-Series
Downspout Boots
E-Series downspout boots have square bottom outlets to connect to trench drains. Available with round or square top bell.
Material:
ASTM-A48 Class 30B Cast Iron
Finish Options:
Plain, or Architectural Powder Coating
Recycled Content:
85%
Country of Origin:
100% Made in the USA
Material:
ASTM-A48 Class 30B Cast Iron
Finish Options:
Plain, or Architectural Powder Coating
Recycled Content:
85%
Country of Origin:
100% Made in the USA
Material:
ASTM-A48 Class 30B Cast Iron
Finish Options:
Plain, or Architectural Powder Coating
Recycled Content:
85%
Country of Origin:
100% Made in the USA
Material:
ASTM-A48 Class 30B Cast Iron
Finish Options:
Plain, or Architectural Powder Coating
Recycled Content:
85%
Country of Origin:
100% Made in the USA
Material:
ASTM-A48 Class 30B Cast Iron
Finish Options:
Plain, or Architectural Powder Coating
Recycled Content:
85%
Country of Origin:
100% Made in the USA
Material:
ASTM-A48 Class 30B Cast Iron
Finish Options:
Plain, or Architectural Powder Coating
Recycled Content:
85%
Country of Origin:
100% Made in the USA
Material:
ASTM-A48 Class 30B Cast Iron
Finish Options:
Plain, or Architectural Powder Coating
Recycled Content:
85%
Country of Origin:
100% Made in the USA
Material:
ASTM-A48 Class 30B Cast Iron
Finish Options:
Plain, or Architectural Powder Coating
Recycled Content:
85%
Country of Origin:
100% Made in the USA
Material:
ASTM-A48 Class 30B Cast Iron
Finish Options:
Plain, or Architectural Powder Coating
Recycled Content:
85%
Country of Origin:
100% Made in the USA
Material:
ASTM-A48 Class 30B Cast Iron
Finish Options:
Plain, or Architectural Powder Coating
Recycled Content:
85%
Country of Origin:
100% Made in the USA
Material:
ASTM-A48 Class 30B Cast Iron
Finish Options:
Plain, or Architectural Powder Coating
Recycled Content:
85%
Country of Origin:
100% Made in the USA
Material:
ASTM-A48 Class 30B Cast Iron
Finish Options:
Plain, or Architectural Powder Coating
Recycled Content:
85%
Country of Origin:
100% Made in the USA
Product Drawings
E-34 | 3”x4” Top Bell
E-35 | 3”x5” Top Bell

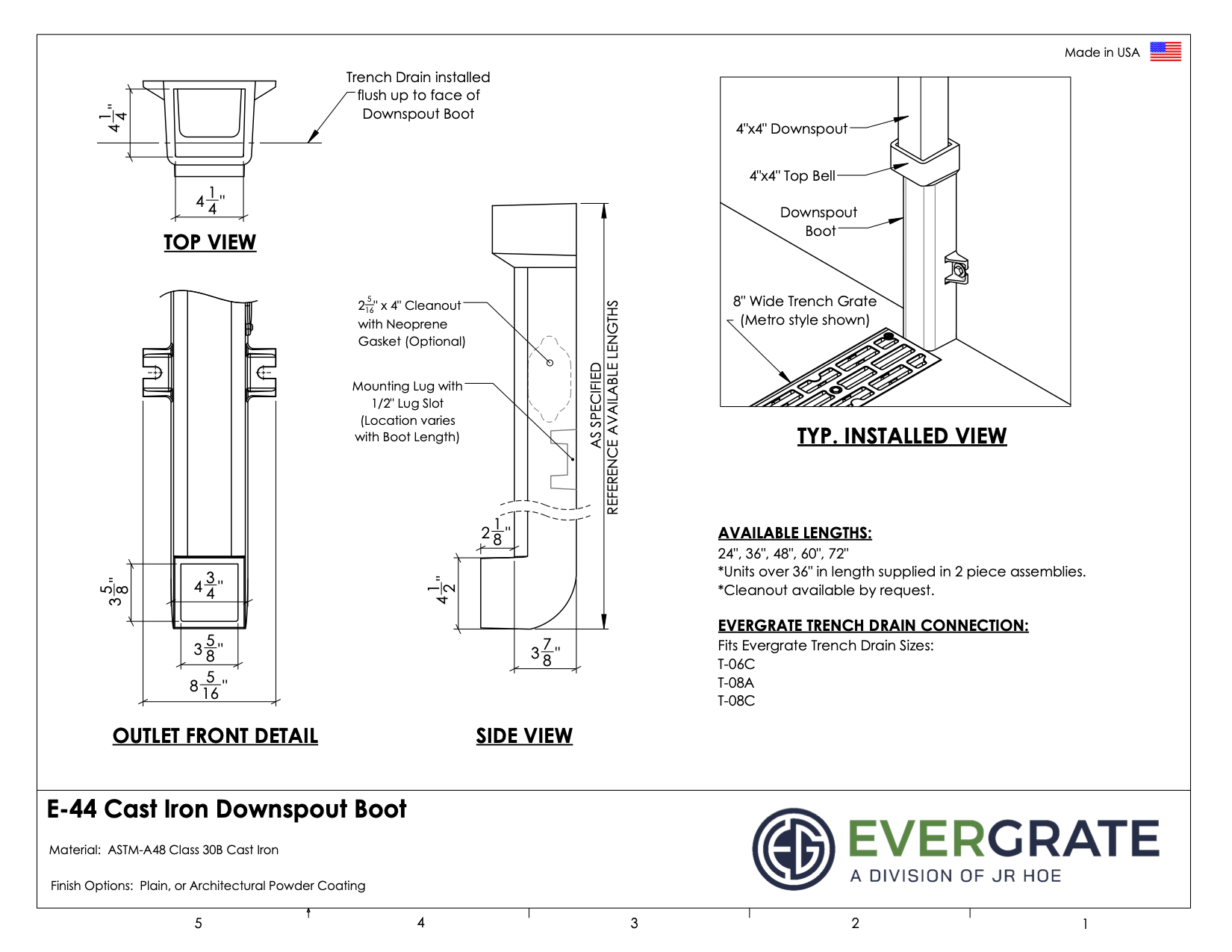

E-44 | 4”x4” Top Bell

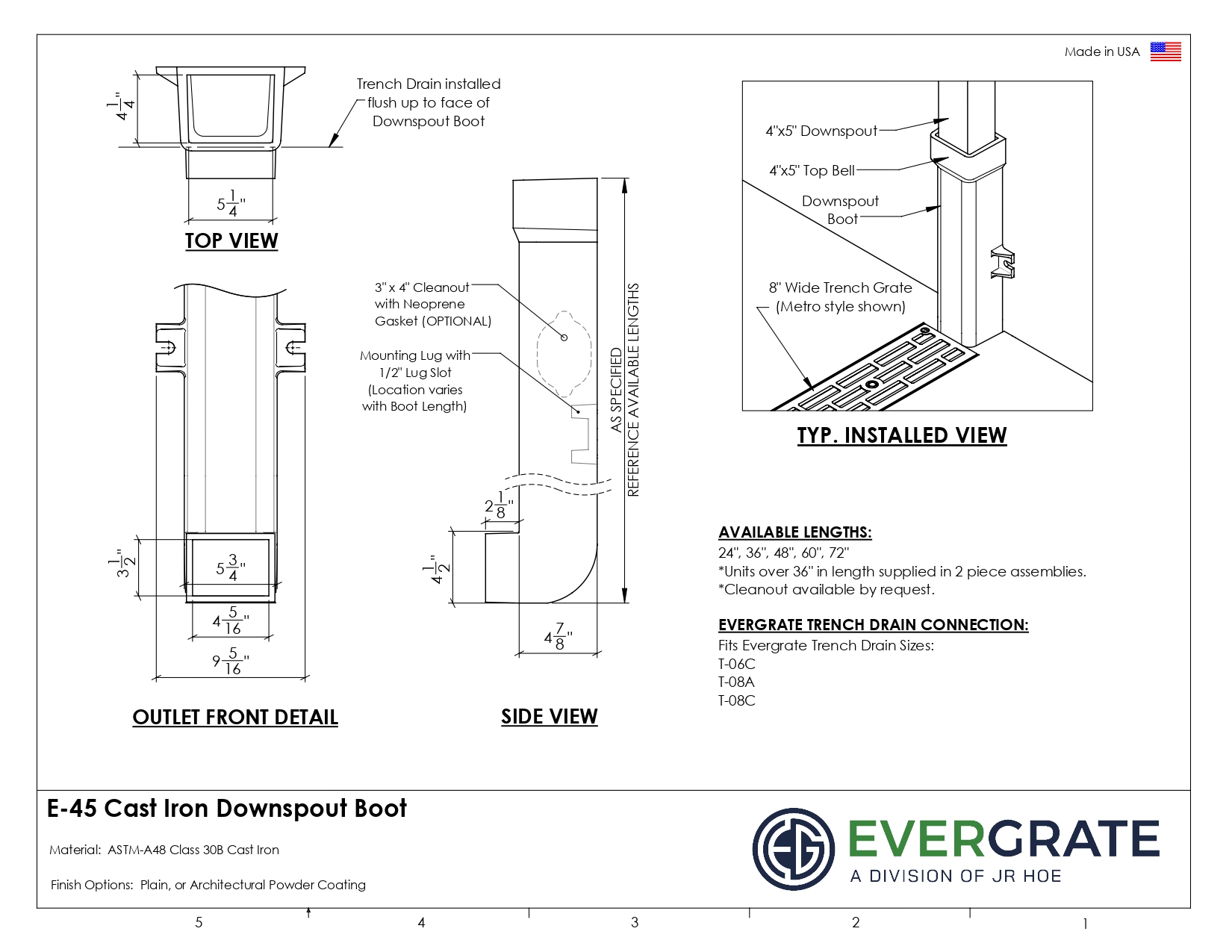

E-45 | 4”x5” Top Bell
E-46 | 4”x6” Top Bell
E-55 | 5”x5” Top Bell
E-56 | 5”x6” Top Bell
E-57 | 5”x7” Top Bell
E-66 | 6”x6” Top Bell
E-R4 | Ø4” Top Bell
E-R5 | Ø5” Top Bell
E-R6 | Ø6” Top Bell
Additional Document Downloads
Product Catalog
N-Series
Downspout Boots
N-Series downspout boots have round bottom outlets to connect to pipe drains. Available with round or square top bell.
Material:
ASTM-A48 Class 30B Cast Iron
Finish Options:
Plain, Architectural Powder Coating
Recycled Content:
85%
Country of Origin:
100% Made in the USA
Material:
ASTM-A48 Class 30B Cast Iron
Finish Options:
Plain, Architectural Powder Coating
Recycled Content:
85%
Country of Origin:
100% Made in the USA
Material:
ASTM-A48 Class 30B Cast Iron
Finish Options:
Plain, Architectural Powder Coating
Recycled Content:
85%
Country of Origin:
100% Made in the USA
Material:
ASTM-A48 Class 30B Cast Iron
Finish Options:
Plain, Architectural Powder Coating
Recycled Content:
85%
Country of Origin:
100% Made in the USA
Material:
ASTM-A48 Class 30B Cast Iron
Finish Options:
Plain, Architectural Powder Coating
Recycled Content:
85%
Country of Origin:
100% Made in the USA
Material:
ASTM-A48 Class 30B Cast Iron
Finish Options:
Plain, Architectural Powder Coating
Recycled Content:
85%
Country of Origin:
100% Made in the USA
Material:
ASTM-A48 Class 30B Cast Iron
Finish Options:
Plain, Architectural Powder Coating
Recycled Content:
85%
Country of Origin:
100% Made in the USA
Material:
ASTM-A48 Class 30B Cast Iron
Finish Options:
Plain, Architectural Powder Coating
Recycled Content:
85%
Country of Origin:
100% Made in the USA
Material:
ASTM-A48 Class 30B Cast Iron
Finish Options:
Plain, Architectural Powder Coating
Recycled Content:
85%
Country of Origin:
100% Made in the USA
Material:
ASTM-A48 Class 30B Cast Iron
Finish Options:
Plain, Architectural Powder Coating
Recycled Content:
85%
Country of Origin:
100% Made in the USA
Material:
ASTM-A48 Class 30B Cast Iron
Finish Options:
Plain, Architectural Powder Coating
Recycled Content:
85%
Country of Origin:
100% Made in the USA
Material:
ASTM-A48 Class 30B Cast Iron
Finish Options:
Plain, Architectural Powder Coating
Recycled Content:
85%
Country of Origin:
100% Made in the USA
Material:
ASTM-A48 Class 30B Cast Iron
Finish Options:
Plain, Architectural Powder Coating
Recycled Content:
85%
Country of Origin:
100% Made in the USA
(Click on each of the drawings to learn more)
Product Drawings
N-34 | 3”x4” Top Bell
N-35 | 3”x5” Top Bell
N-44 | 4”x4” Top Bell
N-45 | 4”x5” Top Bell
N-46 | 4”x6” Top Bell
n-55 | 5”x5” Top Bell
n-56 | 5”x6” Top Bell
n-57 | 5”x7” Top Bell
n-66 | 6”x6” Top Bell
N-R3 | Ø3” Top Bell
N-R4 | Ø4” Top Bell
N-R5 | Ø5” Top Bell

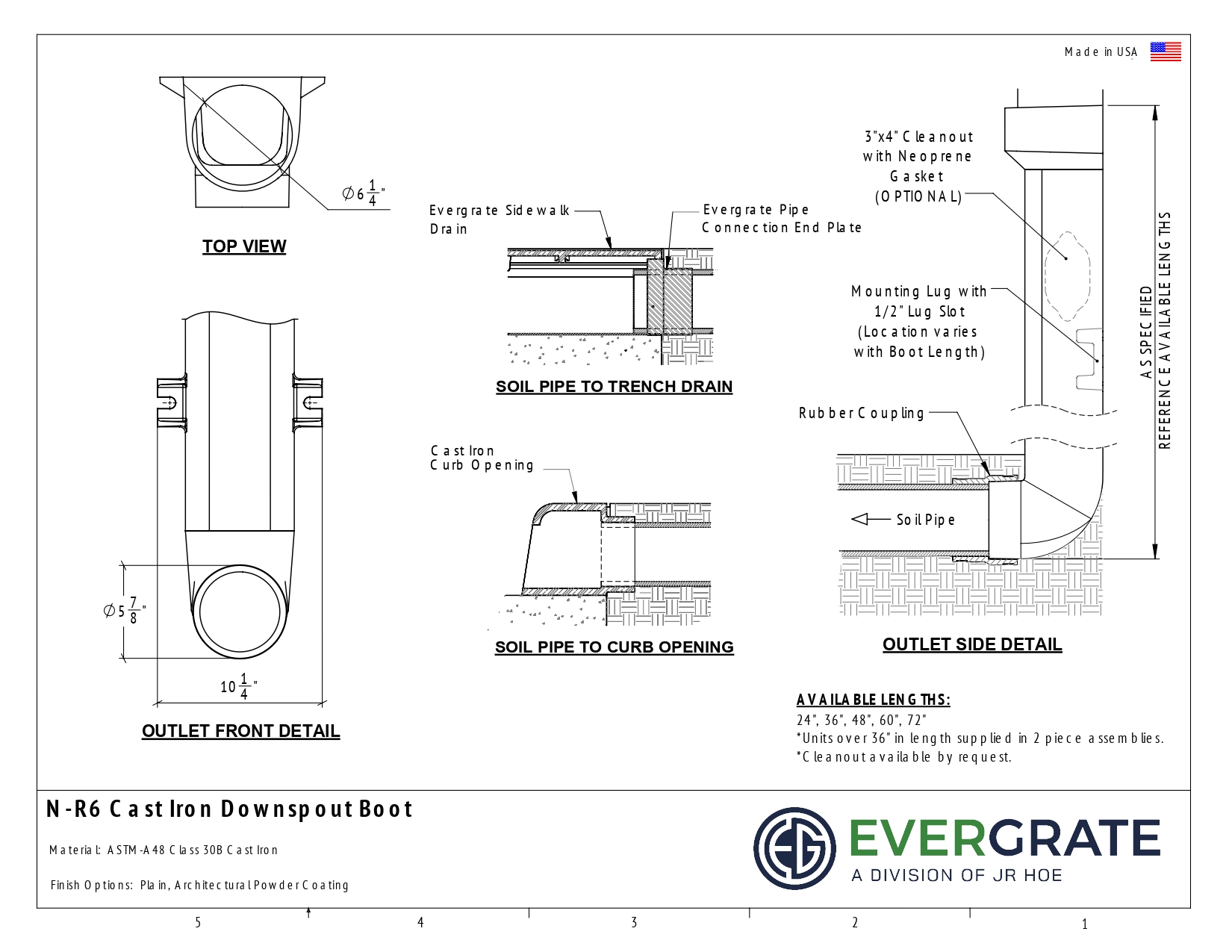

n-R6 | Ø6” Top Bell
Additional Document Downloads
Product Catalog
Why Evergrate Downspout Boots?
Durable Cast Iron Construction
ASTM A48 Class 30B gray iron offers exceptional downspout protection
Cost-Saving Design
Often eliminates the need for below ground piping systems and related excavation
Green Infrastructure Solution
Evergrate downspout boots are ideal for green infrastructure and Low Impact Design (LID) applications.
Downspout Disconnection
Eliminates downspout runoff from underground systems when diverted to green infrastructure
Made in America.
Made to Last.
All Evergrate components are proudly manufactured and assembled in the USA using domestic materials of unparalleled durability.
Manufactured from
Recycled Content
All Evergrate products are manufactured using an average of approximately 85% recycled content, and 100% recyclable at the end of their life cycle.
