Evergrate Curb Openings
Evergrate curb openings provide much needed protection at curb openings in sidewalks and roadways. Our cast iron curb openings prevent concrete curb damage while enhancing the visual appeal of the streetscape. Available in multiple sizes and connection types, all curb openings work with both Angle and Channel style frames, offering you a comprehensive streetscape drainage system.
Your Seamless Streetscape Drainage Solution.
Evergrate curb openings are compatible with our trench drains and downspout boots, providing a high quality sidewalk drainage system with virtually limitless possibilities.
Trench Connection
Compatible with Angle and Channel frames, this curb opening is designed for a rear connection with Evergrate trench drains.
Material:
ASTM-A48 Class 30B Gray Iron
Finish:
Plain, or anti-skid black powder coat
Weight:
25 lbs. ea.
Recycled Content:
85%
Country of Origin:
100% Made in the USA
Note: C646-T Curb Opening compatible with both T-06C and T-06A Trench drain
Material:
ASTM-A48 Class 30B Gray Iron
Finish:
Plain, or anti-skid black powder coat
Weight:
28.5 lbs. ea.
Recycled Content:
85%
Country of Origin:
100% Made in the USA
Note: C846-T Curb Opening Compatible with Both T-08C and T-08A Trench Drain
Material:
ASTM-A48 Class 30B Gray Iron
Finish:
Plain, or anti-skid black powder coat
Weight:
35 lbs. ea.
Recycled Content:
85%
Country of Origin:
100% Made in the USA
Note: C1246-T Curb Opening Compatible with Both T-12C and T-12A Trench Drain
Material:
ASTM-A48 Class 30B Gray Iron
Finish:
Plain, or anti-skid black powder coat
Weight:
38.5 lbs. ea.
Recycled Content:
85%
Country of Origin:
100% Made in the USA
Note: C1446-T Curb Opening Compatible with Both T-14C and T-14A Trench Drain
(Click on each of the drawings to learn more)

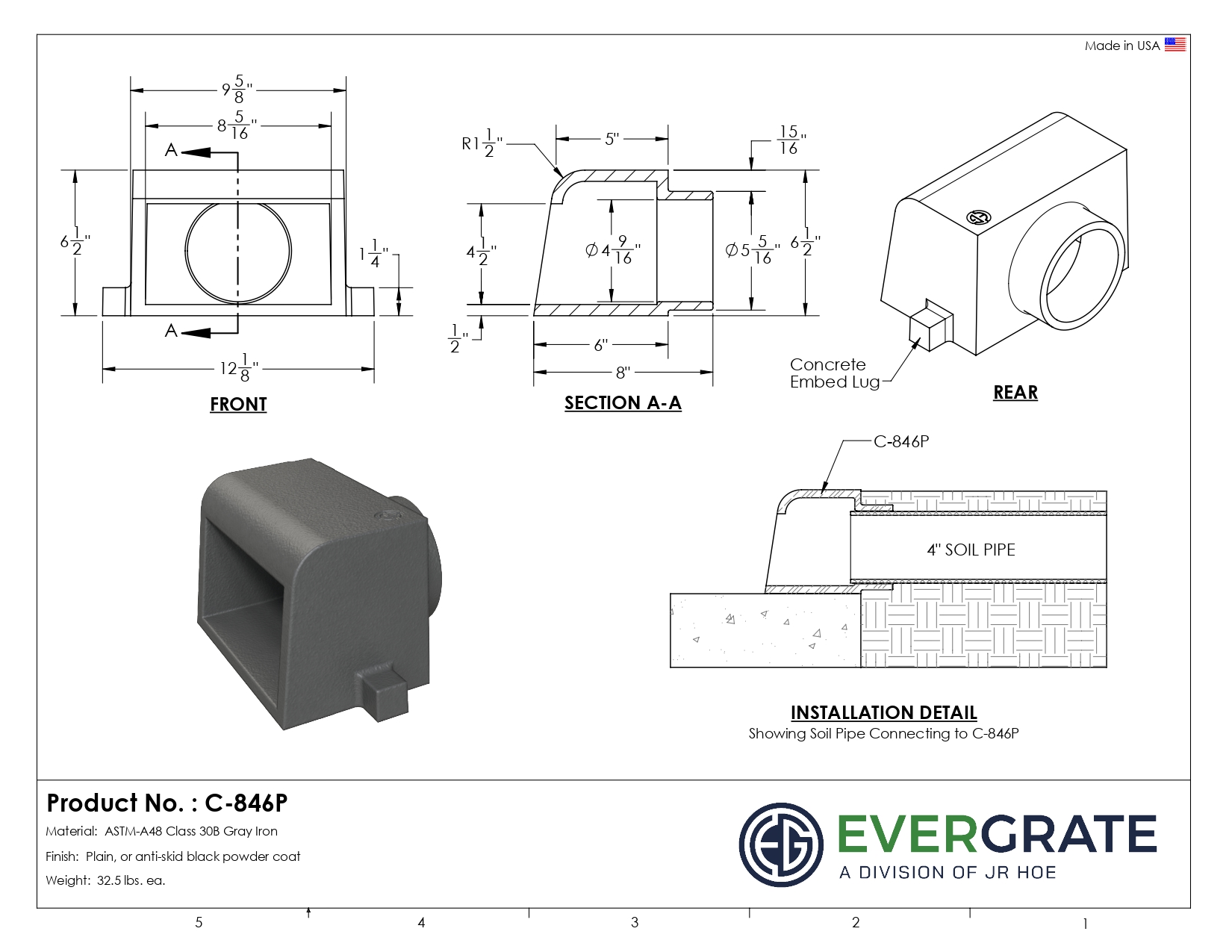

Pipe Connection
The rear spigot of the curb opening is engineered to fit a 4” soil pipe. Pipes can be inserted and sealed into the opening or secured with a rubber adapter.
Material:
ASTM-A48 Class 30B Gray Iron
Finish:
Plain, or anti-skid black powder coat
Weight:
27.8 lbs. ea.
Recycled Content:
85%
Country of Origin:
100% Made in the USA
Material:
ASTM-A48 Class 30B Gray Iron
Finish:
Plain, or anti-skid black powder coat
Weight:
32.5 lbs. ea.
Recycled Content:
85%
Country of Origin:
100% Made in the USA
Material:
ASTM-A48 Class 30B Gray Iron
Finish:
Plain, or anti-skid black powder coat
Weight:
42.1 lbs. ea.
Recycled Content:
85%
Country of Origin:
100% Made in the USA
Material:
ASTM-A48 Class 30B Gray Iron
Finish:
Plain, or anti-skid black powder coat
Weight:
46.5 lbs. ea.
Recycled Content:
85%
Country of Origin:
100% Made in the USA
(Click on each of the drawings to learn more)
Flush Back
These curb openings are flat in the back to sit flush with a typical isolated curb, allowing runoff to flow into natural drainage areas.
Material:
ASTM-A48 Class 30B Gray Iron
Finish:
Plain, or anti-skid black powder coat
Weight:
22.5 lbs. ea.
Recycled Content:
85%
Country of Origin:
100% Made in the USA
Material:
ASTM-A48 Class 30B Gray Iron
Finish:
Plain, or anti-skid black powder coat
Weight:
25.5 lbs. ea.
Recycled Content:
85%
Country of Origin:
100% Made in the USA
Material:
ASTM-A48 Class 30B Gray Iron
Finish:
Plain, or anti-skid black powder coat
Weight:
31.5 lbs. ea.
Recycled Content:
85%
Country of Origin:
100% Made in the USA
Material:
ASTM-A48 Class 30B Gray Iron
Finish:
Plain, or anti-skid black powder coat
Weight:
34.5 lbs. ea.
Recycled Content:
85%
Country of Origin:
100% Made in the USA
(Click on each of the drawings to learn more)
Why Evergrate Curb openings?
Durable Cast Iron Construction
Offers exceptional protection of concrete at curb openings or at curb cuts.
Custom Options
We can customize curb openings with municipal logos or insignias, including with special lettering.
Green Infrastructure Solution
Evergrate curb openings are ideal for green infrastructure and Low Impact Design (LID) applications.
Versatile Application
May be used for inflow or outflow applications, with either Angle or Channel trench frames.
Made in America.
Made to Last.
All Evergrate components are proudly manufactured and assembled in the USA using domestic materials of unparalleled durability.
Manufactured from
Recycled Content
All Evergrate products are manufactured using an average of approximately 85% recycled content, and 100% recyclable at the end of their life cycle.
